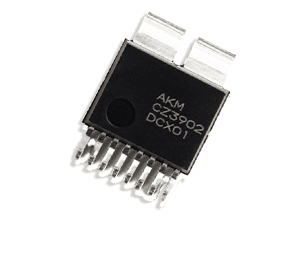

CZ39 Series

Current sensors for EV, highly compatible with SiC/GaN power devices.

Fast response time of 100ns that can provide all kinds of overcurrent protection.  Compatible with AEC-Q100.

CZ39 Series CZ39 Series

Overview

  • Fast response time : 100ns
  • Low primary conductor resistance : 0.3mΩ
  • AEC-Q100

What can be done with CZ39 series?

  • High-speed response
  • Low heat generation
  • Noiseproof propertties
  • System downsizing

CZ39 series is highly compatible with SiC/GaN power devices and contribute to the miniaturization of On Board Chargers (OBC) and DC/DC converters that are installed in automobiles. Its high-speed response also makes this product suitable for the use as electronic fuses (E-Fuses).

Features

1. Detects current with a fast response time of 100ns

The high sensitivity characteristics of the compound Hall element deliver a fast response time.

Using this product in chargers and DC/DC converters that use next-generation power devices such as SiC and GaN enables a higher switching frequency, resulting in circuits with smaller board sizes.

It also has a fast response time that can provide all kinds of overcurrent protection, making it possible to introduce safe electronic fuse circuits into automotive power conversion systems.

2. 0.3mΩ primary conductor resistance for reduced heat generation and easier thermal design

We have developed a unique package to achieve a low primary conductor resistance of 0.3mΩ. The heat generation is suppressed even under the continuous energization of 40Arms at an ambient temperature of 125ºC, thereby facilitating thermal design.

In addition, the voltage-resistant structure that ensures sufficient creepage and space distances enables the use in high-voltage applications with voltages in excess of 650V.

3. Current detection is possible without influence of noise even during high-speed switching operation

The use of SiC and GaN power devices significantly impacts the noise environment due to their high voltage and high speed switching.

This product is less likely to affect sensor characteristics even in the environments mentioned above, and can detect current without the influence of noise.

Applications

  • On Board Charger (OBC) for EV
  • DC/DC Converter for EV
  • Electronic Fuse (E-Fuse) for EV

Find other products

CZ39 Series Block Diagram CZ39 Series Block Diagram

FAQ

Comming soon

Quality Data

The AKM Group prepares quality data.

Comming soon

Certified with safety standards

Comming soon

Design Support

You can use useful simulation or calculation tools for your design.Please note that you are required to register your information when using some of those tools.

Series lineup

ml

Supply
Voltage
 Output
Voltage
 Effective
Current
 Measurement
Range
 Bipolar /
Unipolar		 Ratiometric/
Non-Ratiometric		 Creepage
Clearance
 Working
Voltage *
 Product
Name		 Product
Series		 Part
Status
(V) (V) (Arms) (Apeak) (mm) (Vrms)
5.0 5.0 100 ± 115 to ± 225 Bipolar Retiometric ≧ 8.0 1118 CZ375x CZ375 Series MP
60 ± 5.3 to ± 180
 CZ370x CZ370 Series
CZ372 Series		 MP
0 to 345.2 Unipolar CZ372x
3.0 50 ± 11.6 to ± 166.6 Bipolar Non-Ratiometric CZ3AGx CZ3A Series MP
3.3 3.3 ± 12.9 to ± 129.1 CZ3A0x

* Pollution Degree II with basic insulation
