Sensor Element
(for NDIR type Gas Sensors)

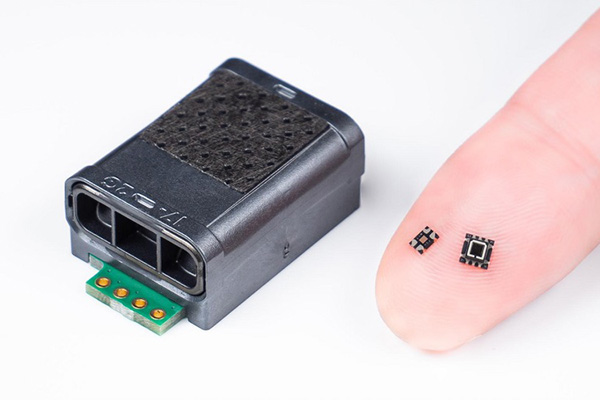

Components for measuring gas concentrations using the NDIR method.
These components are suitable for customers who design and develop gas sensors from modules.

CO2 Sensors

Overview

The infrared LED, infrared sensor, AFE IC with a built-in infrared LED driver are suitable for NDIR (Non Dispersive InfraRed) type gas sensors. As the components of a gas sensor, these new technologies are able to transform our daily life at home to a more convenient, secure, safe, and energy saving environment.​

Specifications Comparison

Infrared LED for NDIR type Gas Sensors

AKM's infrared LEDs utilize the epitaxial growth technology for semiconductor thin films, which have been developed through the manufacturing of magnetic sensors. This technology achieves  emission wavelength control for the optimum gas absorption wavelength band and high-speed and high-output emission control.

Our own compact molded resin packaging technology contributes to the downsizing of gas sensors as the compact Surface Mounted Devices (SMD) infrared LEDs.

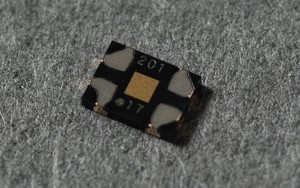

AK9700AE AK9700AE

Product Name

  AK9700AE
AK9700AD
AK9703AJ
Peak emission wavelength [μm] 4.3 3.6
Spectral half width [μm] 1.0 0.7
Operation Temperature [°C] 0 to 50 -40 to 90 -40 to 85
Size (D/W/H)
[mm] 2.6 x 1.9 x 0.4
Automotive grade (*)   - Yes -
AEC-Q101   - Yes -
Status

  MP MP MP
Product Details

  AK9700AE AK9700AD AK9703AJ

* This product is for monitoring air quality in the cabin of a vehicle. For other applications, please contact us.

Infrared Sensors for NDIR type Gas Sensors

AKM's infrared sensor utilizes the epitaxial growth technology for semiconductor thin films, which have been developed through the manufacturing of magnetic sensors. This technology achieves wavelength sensitivity control for the optimum gas absorption wavelength band and high-speed response and high Signal-to-Noise Ratio (SNR).

Our own compact molded resin packaging technology contributes to the downsizing of gas sensors as the infrared sensors of the compact Surface Mounted Devices (SMD).

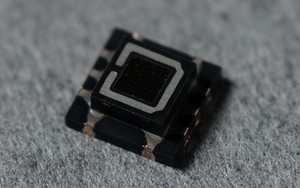

AK9710AE AK9710AE

Product Name

  AK9710AEF01
AK9710ADF01
AK9710AEF3A
AK9730AJF21
IR1011
Output Current Ip [nA] 1.04 to 4.9 0.58 to 2.04 2.9 to 14.2 4.5 to 7.5
Internal Resistance [kΩ] 75 to 188 75 to 188 15 to 250 112 to 188
Optical Filter [μm] CWL : 4.28,
FWHM : 0.27
CWL : 3.91,
FWHM : 0.09
CWL : 3.32,
FWHM : 0.19

Temperature Range [°C] -40 to 85 -40 to 90 -40 to 85 -40 to 85 -40 to 85
Size (D/W/H)
[mm] 3 x 3 x 1.01 2.65 x 1.9 x 0.4
Automotive grade (*)   - Yes - - -
AEC-Q101   - Yes - - -
Status

  MP MP MP MP NRND
Product Details

  AK9710AEF01 AK9710ADF01 AK9710AEF3A AK9730AJF21 IR1011

* This product is for monitoring air quality in the cabin of a vehicle. For other applications, please contact us.

AFE IC with built-in infrared LED driver for NDIR type Gas Sensors

AKM provides a gas sensor signal processing solution for NDIR type gas sensor applications by combining its infrared LEDs and infrared sensors with an external MCU.

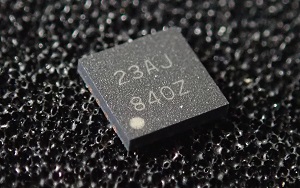

AK9723AJ AK9723AJ

Product Name

  AK9721AE
AK9724AE
AK9723AD
AK9723AJ
LED Drive Current [mA] 28 - 121 Programmable (3mA Step)
ADC resolution [bit] 13
Power Supply [V] 2.7 to 3.6
Operation Temperature [°C] -40 to 90 -40 to 85
Size (D/W/H)
[mm] 3.0 x 3.0 x 0.7 3.0 x 3.0 x 0.7 4.0 x 4.0 x 0.7
Automotive grade (*)   - - Yes -
AEC-Q100   - - Yes -
Status

  EOL EOL EOL Preview
Product Details


AK9723AJ

More Information...

* This product is designed to be used for monitoring air quality in the cabin of a vehicle. For other applications, please contact us.

Purchase a product or sample / Technical questions

Purchase a sample

Purchase a sample

Samples are available from our web distributor Digi-key

Purchase a sample

Purchase a sample

Samples are available from our web distributor Mouser

Distributors

Distributors / Representatives

All product are sold via Distributors / Representatives
