Currentier Product Lineup
Performance and Specifications by Series
Current Sensors
We have a wide lineup of Currentier magnetic open-type coreless current sensor ICs, including ultra-high accuracy models and models with overcurrent detection functions. Each of these models and series has its own strengths.
You can select products using the product map or the selection table.
You can find products using tools such as the selection table and the product map.

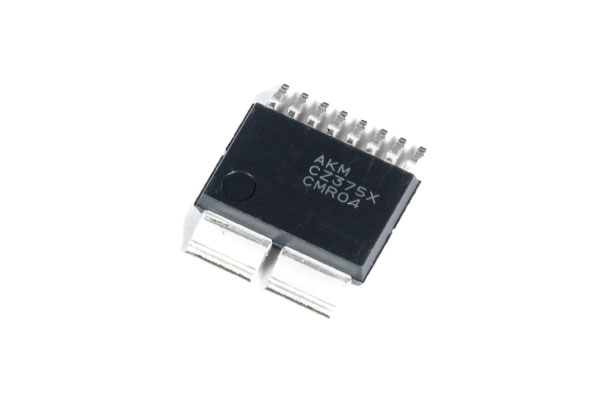

CZ375 Series
Search by Selection Table
You can select a product from the product specifications.
Click on the product series name to see the details.
| Current Sensor Type |
Package | Supply Voltage |
Output Voltage |
Effective Current |
Measurement Range |
Bipolar / Unipolar |
Ratiometric/ Non-Ratiometric |
Creepage Clearance |
Working Voltage * |
Product Name |
Product Series |
Part Status |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (V) | (V) | (Arms) | (Apeak) | (mm) | (Vrms) | |||||||
| Coreless | SOP | 5.0 | 5.0 | 100 | ± 115 to ± 225 | Bipolar | Retiometric | ≧ 8.0 | 1118 | CZ375x | CZ375 Series | MP |
| 60 | ± 5.3 to ± 180 |
CZ370x | CZ370 Series CZ372 Series |
MP | ||||||||
| 0 to 345.2 | Unipolar | CZ372x | ||||||||||
| 3.0 | 50 | ± 11.6 to ± 166.6 | Bipolar | Non-Ratiometric | CZ3AGx | CZ3A Series | MP | |||||
| 3.3 | 3.3 | ± 12.9 to ± 129.1 | CZ3A0x |
* Pollution Degree II with basic insulation

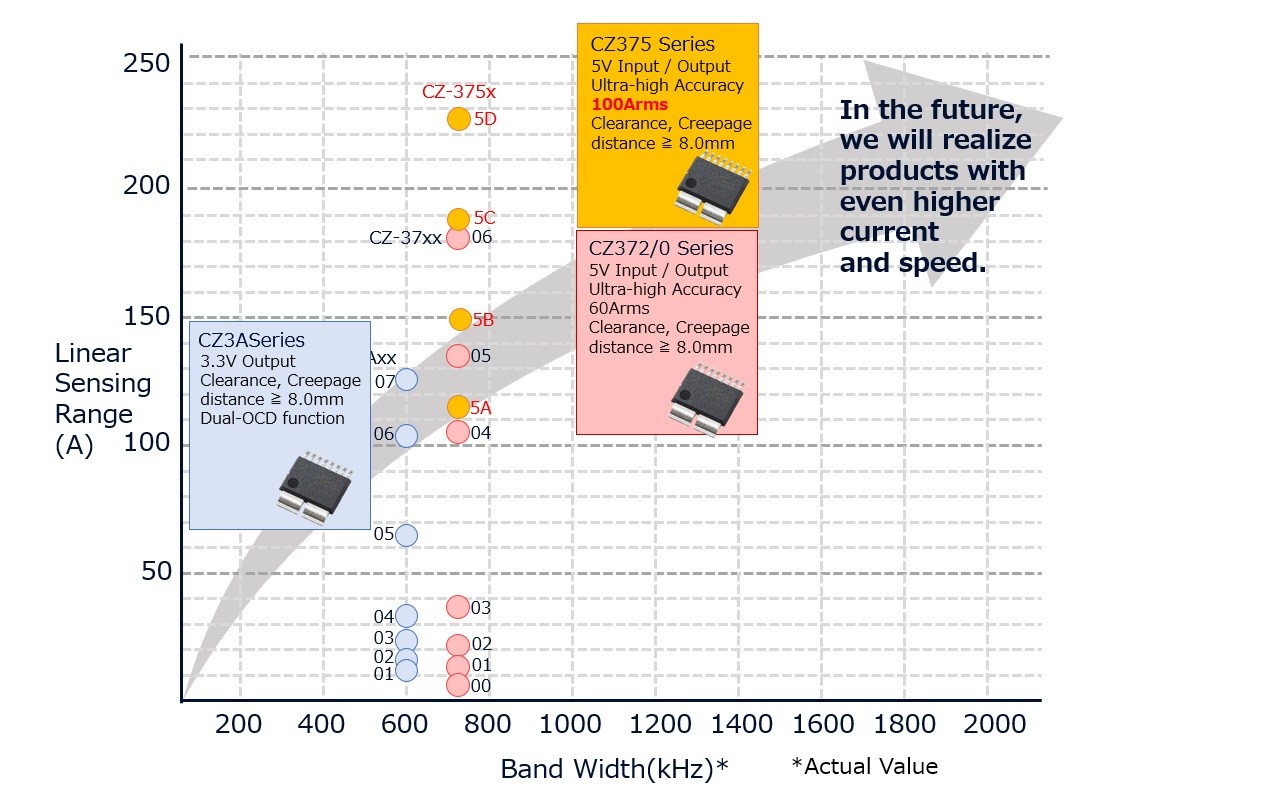

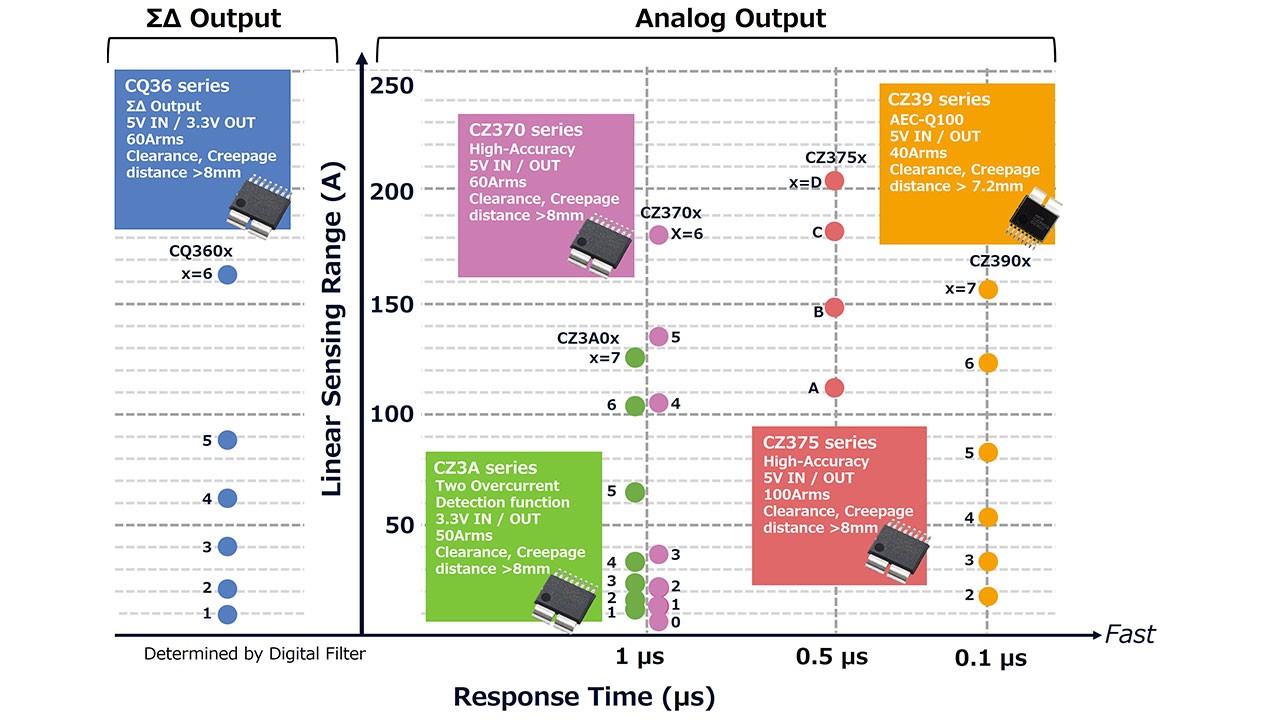

Search by product map
You can see the product map in terms of measurable current and response time.
In the map, the upper direction is for high current applications and the right direction is for high speed applications.
Parametric Search
It is possible to narrow down the most suitable product based on supply voltage and measurement current range.
You can also check the input/output characteristics of each product using the Input/Output Characteristics Check Tool.
