爬电距离与空间距离计算工具
电流传感器
AKM 的无芯电流传感器 IC “Currentier” 具有符合 UL61800-5-1 标准的绝缘性能。内部没有爬电距离与空间距离,仅凭独创的封装结构即可安全地使用。本页介绍了可根据客户使用环境,计算旨在符合 UL61800-5-1 标准的电流传感器所需绝缘性能 ( 爬电距离与空间距离 ) 的工具。 ( 使用时,需要进行 myAKM 注册。)
工具的使用方法
通过输入客户的使用环境条件,“ 爬电距离 / 电气间隙计算工具 ” 可以计算出符合 UL61800-5-1 标准绝缘所需的爬电距离 / 电气间隙,并可进行查看 AKM 电流传感器是否可以满足其要求。
所需的爬电距离和空间距离因使用环境和绝缘类型而异。( 有关 “爬电距离” 和 “电气间隙” 请参见页面底部。)

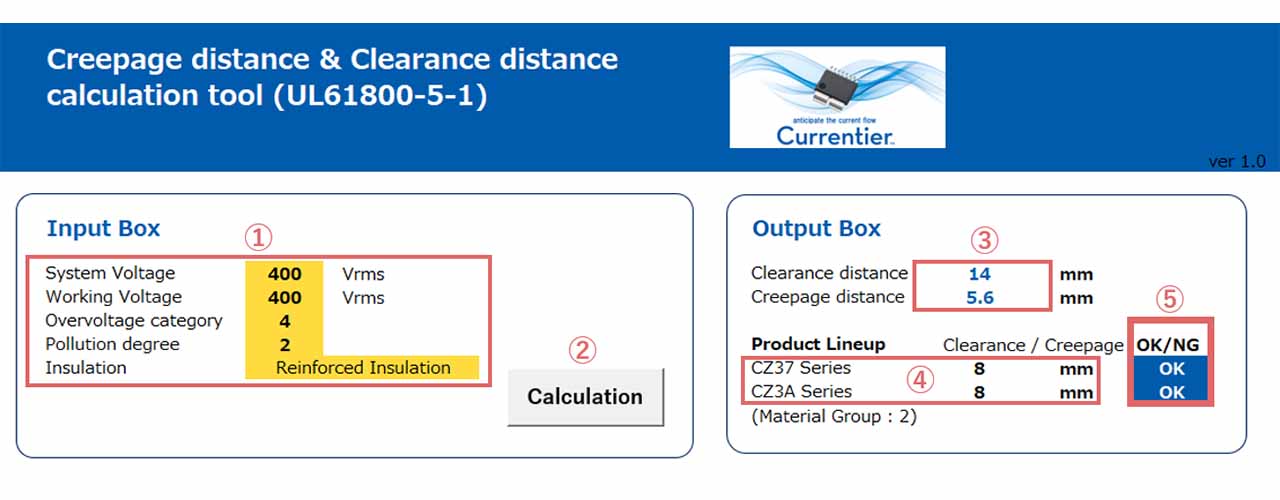

Enter the input fields
(1) 请在输入栏中输入 / 选择下述5项,(2) 最后按下计算按钮。
- 系统电压
- 运作电压
- 过电压分类
- 污染度
- 绝缘类型
确认输出栏内容
计算结果显示在输出列 (3)、(4)、(5) 中。
(3) 您使用环境中绝缘所需的实际爬电距离和电气间隙
(4) AKM 产品系列名称及其爬电距离 / 电气间隙
(5) 确认 AKM 电流传感器在您使用环境中的性能是否满足。
AKM电流传感器 (CZ37 系列 / CZ3A 系列 ) 材料组为2、可确保爬电距离/间隙距离为 8mm 以上。 (3) 的计算结果为 8mm 以下时显示 OK,8mm 以上时显示 NG。
所需的爬电距离 / 电气间隙因材料组而异。(* 材料组是一组按表面通电难易度 (CTI 值 ) 分类的绝缘材料)
典型电流传感器的材料组如下。
材料组 1 : CTI ≧ 600
材料组 2 : 400 ≤ CTI < 600
材料组 3a : 175 ≤ CTI < 400
材料组 3b : 100 ≤ CTI < 175
Download tool
爬电距离与空间距离计算工具
(1524KB、zip file)
Please fill in the following form and send it to us.
A URL for downloading will be sent to your registered email address.
* 使用此服务之前,请务必阅读使用条款。
Note
* When you submit the inquiry form, it will automatically be registered in myAKM account. Please refer to myAKM service for further details.
* Please read our Terms and Conditions ,and Privacy Policy before using this service. By registering your e-mail address, you agree to AKM’s Terms of use and Privacy policy.
* Your personal information will be used for the purpose of replying to your inquiry by AKM or AKM‘s authorized sales representatives and distributor(s).
* Please refere to Terms and Conditions on Cookie technology.
电流传感器与绝缘
爬电距离 / 空间距离是指绝缘所需导电部分之间的最短距离。
爬电距离 : 沿着导电部分之间的绝缘物的最短距离
空间距离 : 导电部分之间的空间最短距离

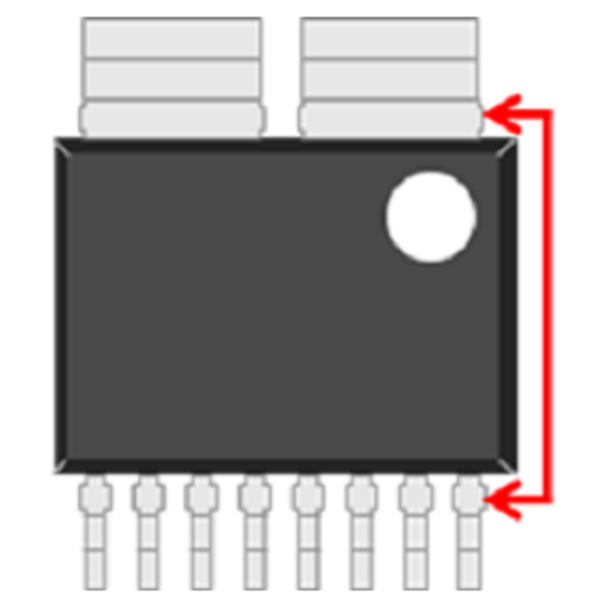

AKM 的电流传感器可按初级侧与次级侧的端子距离,定义爬电距离与空间距离。这是因为采用了内部没有爬电距离与空间距离的独创封装结构 ( 已获得专利 ) 。与内部有爬电距离与空间距离的情况比较,可确保长期的高可靠性。
详情请浏览此处。
另外,通过确保绝缘性,可推动下述课题的解决。
