CZ375 Series

[Q0611]
・Is it possible to sense both DC current and AC current?
A.
・It is possible to sense both DC current and AC current.
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0612]
・What is the difference between maximum primary current and linear sensing range?
A.
・Maximum primary current indicates the current value which can be applied for a long time in a current sensor and depends on the cross-sectional area of the primary conductor.
CZ-375x can be damaged when they have been used for a long time over the maximum effective current value. If current flows at a short period within msec order, such as an over current, CZ-375x is not damaged.
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0613]
・How much current can be flown in CZ-375x?
A.
・It is possible to flow current of up to 100Arms in CZ-375x.
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0614]
・How small current can the CZ-375x resolve?
A.

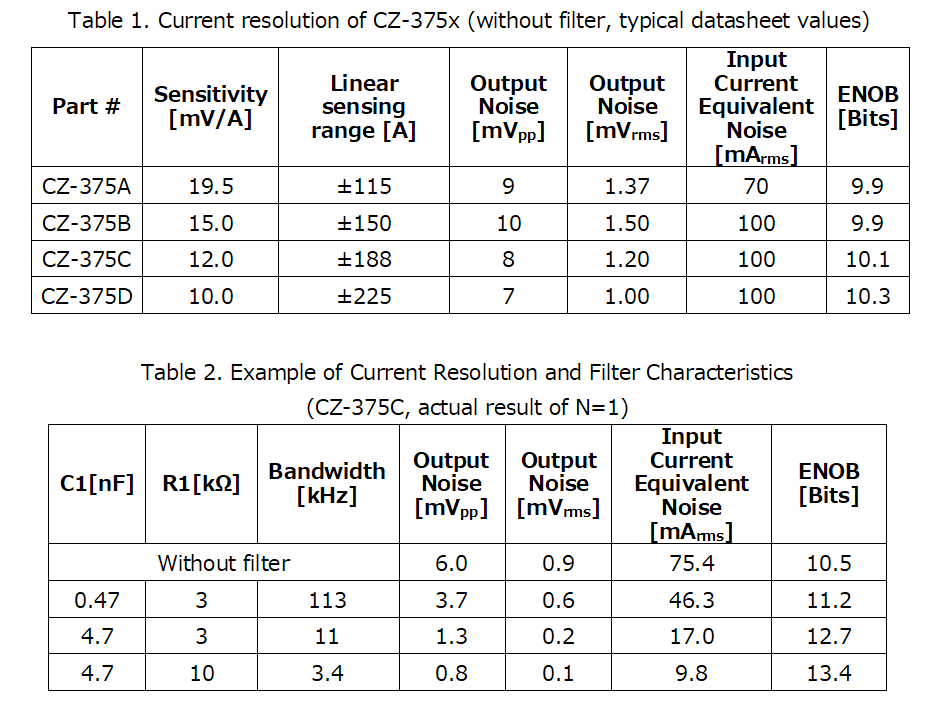

・The current resolution is determined by its output noise voltage.
The current resolution can be increased by applying a noise filtering circuit.
(a) 0.1μF bypass capacitor should be placed close to VDD and VSS pins of CZ-375x.
(b) Add a low-pass filter if it is necessary. The C1 values should be fixed in consideration of load conditions.

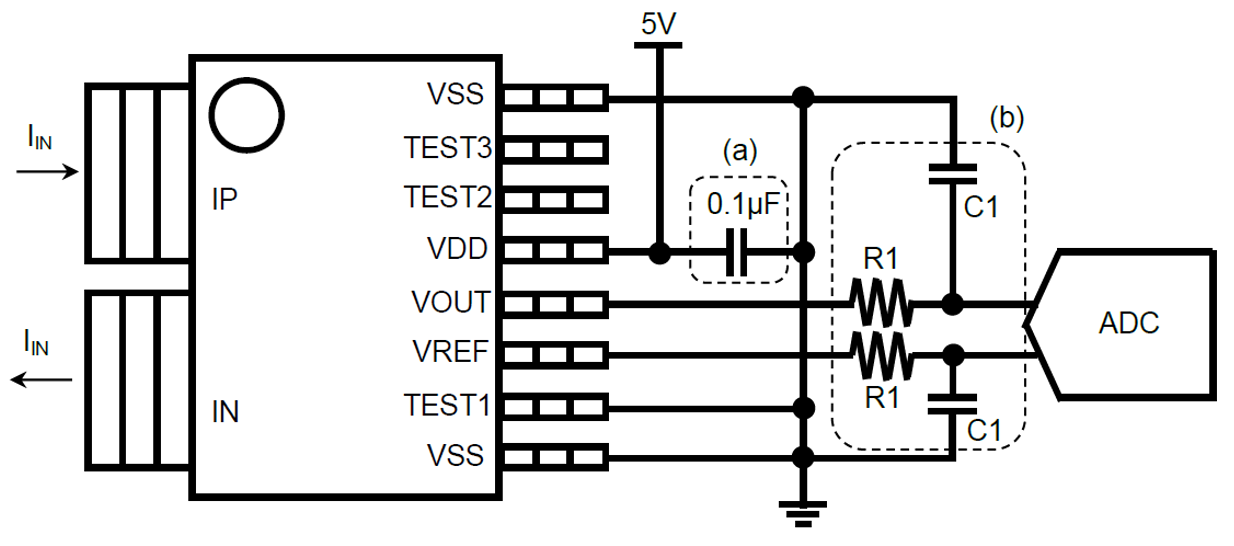

Figure 1. External Circuits Example
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0615]
・How much is the temperature drift of the primary conductor resistance of CZ-375x?
A.
・The temperature drift of the primary conductor resistance of CZ-375x is shown in Figure 2.

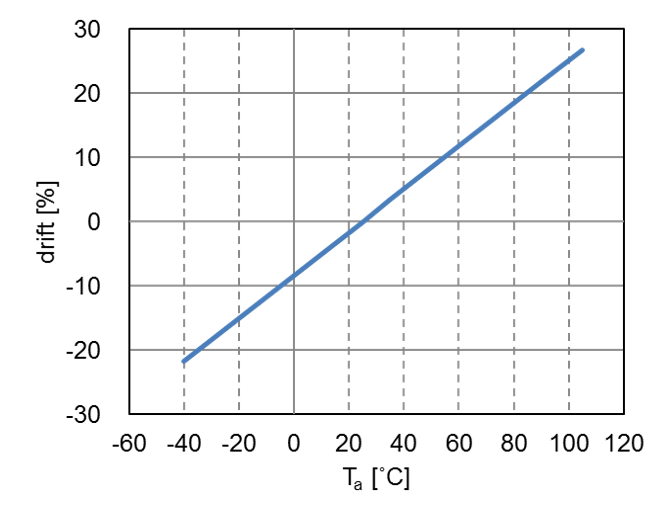

Figure 2. CZ-375x Temperature Drift of the Primary Conductor Resistance (normalized at 25°C)
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0616]
・What is the variation in primary conductor resistance?
A.
・The primary conductor resistance of CZ-375x varies from 0.21 to 0.30mΩ (reference) at 25°C.
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0617]
・What is the inductance of the primary conductor?
A.
・The Primary Conductor Inductance of CZ-375x is about 3nH (reference) at 25°C.
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0618]
・What does "ratiometric" mean?
A.
・The CZ-375x has a ratiometric output. This means that the output of the current sensor changes proportionally to the supply power voltage. A ratiometric output is suitable for applications where the output is converted to digital using an A/D converter and where fluctuation of the power supply voltage causes reference error of the A/D converter.
The supply voltage of the CZ-375x and the reference voltage of A/D converter fluctuate at the same ratio. This will avoid the effects of the fluctuation of the power supply to the A/D converter output.
Table 3 shows the VDD dependence of VREF voltage.
Figure 3 shows the output voltage of the CZ-375A (Sensitivity Vh=19.5mV/A) as an example ratiometric output.

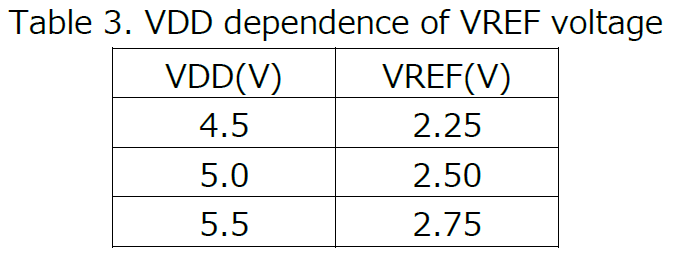

Table 3. VDD dependence of VREF voltage

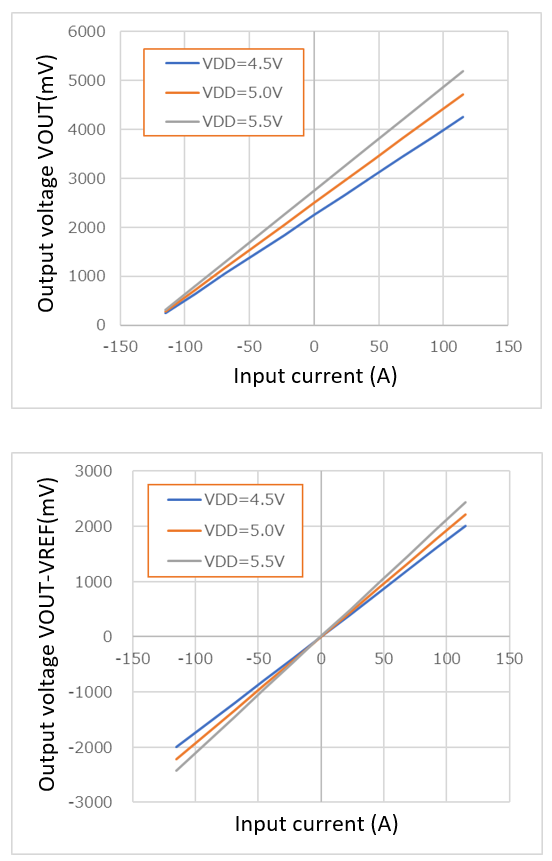

Figure 3. Output voltage of the CZ-375A vs Input current with different VDD. (Left: VOUT, Right: VOUT-VREF)
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0619]
・How soon after power-on will a valid signal be available from the CZ-375x?
A.

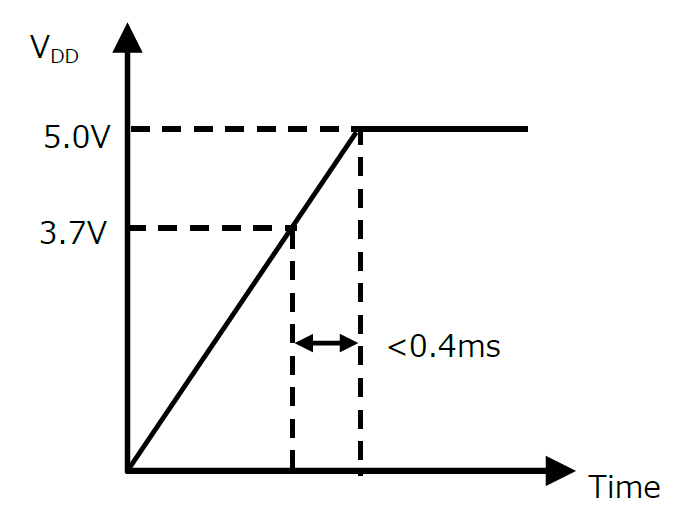

・Figure 4 shows a recommended example of the power up sequence.
In the power up sequence, if the time from VDD=3.7V to VDD=5V is less than 0.4msec, the output will be stabilized after 1.2msec (typ.) from the time VDD=3.7V. If it takes 0.4msec or more, it may take longer to stabilize the output. Please check the time needed to stabilize the output in that case.
Figure4. Recommended example of the power up sequence
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0620]
・What is the response time?
A.
・The response time of CZ-375x is typically 0.5μs with a load capacitance of 1000pF.

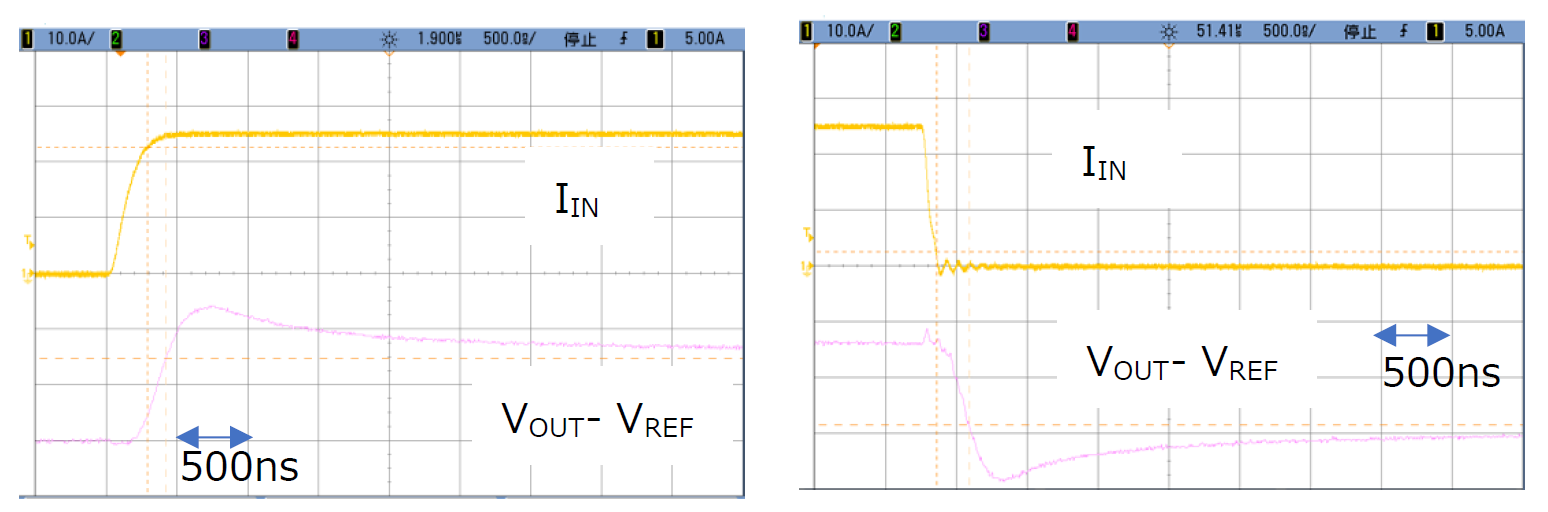

Figure 5. shows the typical pulse response waveform. Rise response waveform (left), fall response waveform (right).
Figure 5. Pulse response waveform of CZ-375x
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0621]
・What happens if a load capacitance over 1000pF is inserted to the CZ-375x VOUT?
A.
・CZ-375x do not output the correct value because of the oscillation of output.
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0622]
・What happens if a load current over +/-2mA is applied to CZ-375x VOUT?
A.
・In this case the CZ-375x does not output the correct value.
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0623]
・Does CZ-375x show magnetic hysteresis?
A.
・No, because CZ-375x does not contain magnetic material.
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0624]
・What safety standards CZ-375x have?
A.
・CZ-375x is certified as IEC/UL 62368-1, UL 1577 by the international certification organization.

・IEC/UL 62368-1 Audio/video, information and communication technology equipment Part 1: Safety requirements Edition 2. (File No. E359197)
・CAN/CSA C22.2 No. 62368-1-14, 2nd Ed, Issued: 2014-12-01 (Audio/video, information and communication technology equipment Part 1: Safety requirements)(File No. E359197)
・UL1577 Non-Optical Isolators-Edition 5.(File No. E499004)
・CSA Component Acceptance Service No. 5A - Component Acceptance Service for Optocouplers and Related Devices (File No. E499004)
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0625]
・What is the clearance distance and the creepage distance?
A.
・The clearance distance and the creepage distance are both over 8.0mm.
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0626]
・What is the CTI of the package?
A.
・The Comparative Tracking Index (CTI) of the CZ-37xx package resin is 400V≦CTI<600. The Material Group is Ⅱ.
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0627]
・How much is the working voltage of CZ-375x?
A.

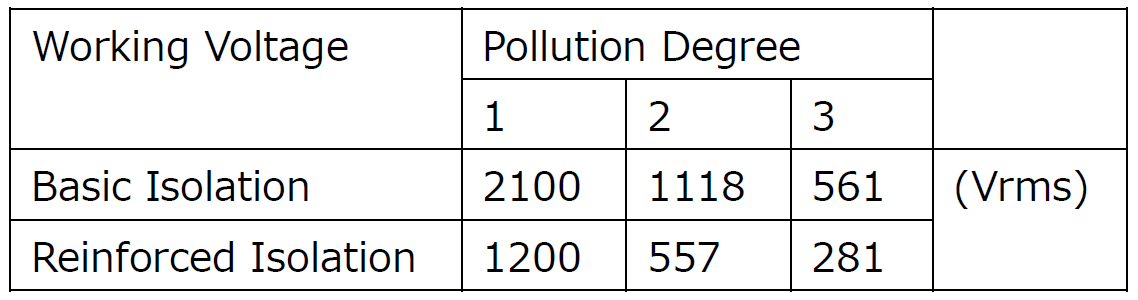

・CZ-375x can be used under the following conditions.
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0628]
・Is it allowable to use this device over the rating isolation voltage of the data-sheet?
A.
・The device should be used within a recommended condition.
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0629]
・What is the voltage noise rejection ratio?
A.
・The Voltage Noise Rejection Ratio of the Primary Conductor was calculated by measuring the output while a high frequency sine wave voltage was applied as the input noise to the primary conductor.
CZ-375x series having a strong voltage noise rejection ratio.
Figure 6. shows the frequency dependency of the voltage noise rejection ratio of CZ-375D. (reference).

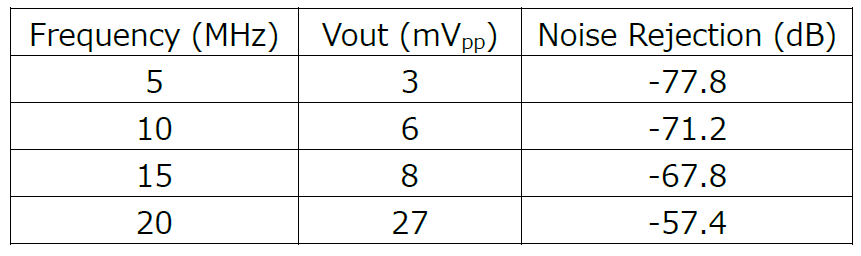

Table 4. Voltage Noise Rejection Ratio when high frequency sine wave voltage (20Vpp) is applied

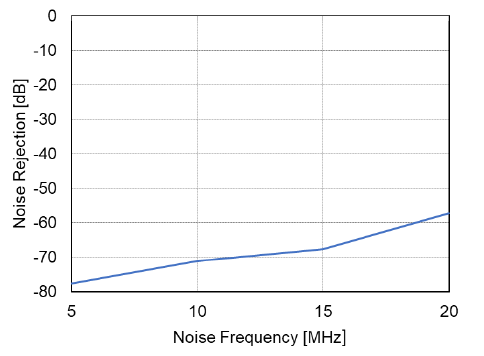

Figure 6. CZ-375D Noise Frequency vs Voltage Noise Rejection Ratio
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0630]
・What are the constant parameters of RC?
A.
・Please decide the parameters considering the requirement of output resolution and response time (Please refer to [Q614]).
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0632]
・Is there the recommended land pattern?
A.

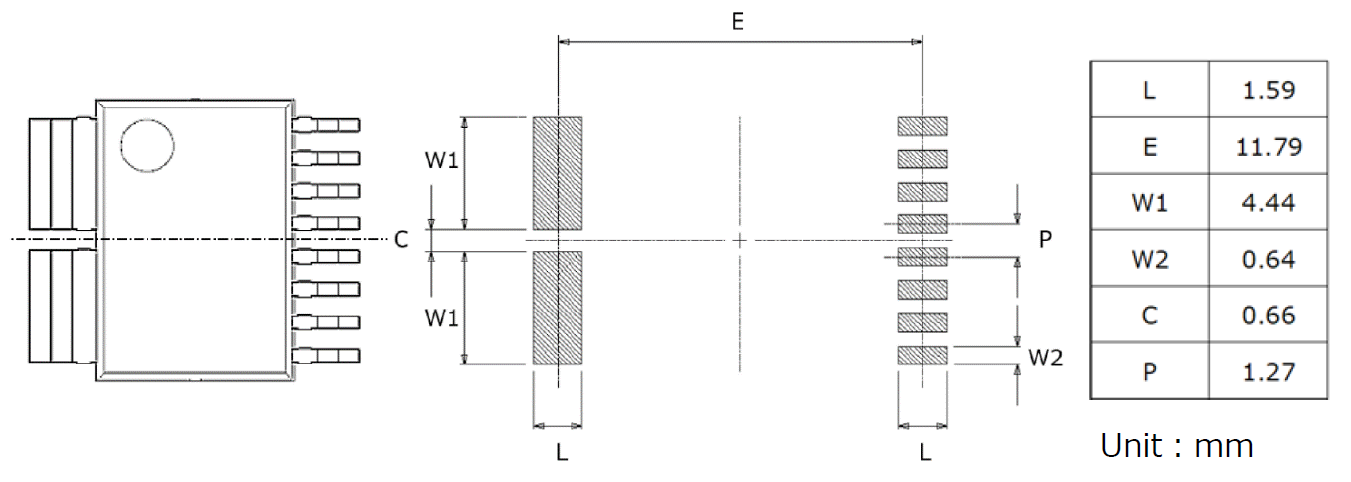

・Yes. The recommended land pattern is shown in Figure 7.
Figure 7. CZ-375x recommended footprint
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0633]
・Are there any other board layout guidelines of CZ-375x?
A.
・Please see the application notes (2. Board Design Guidelines) here.
Click here for details
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0634]
・Is gerber file of the evaluation board provided?
A.
・Yes, please download from: Gerber Files.
Click here for details
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0635]

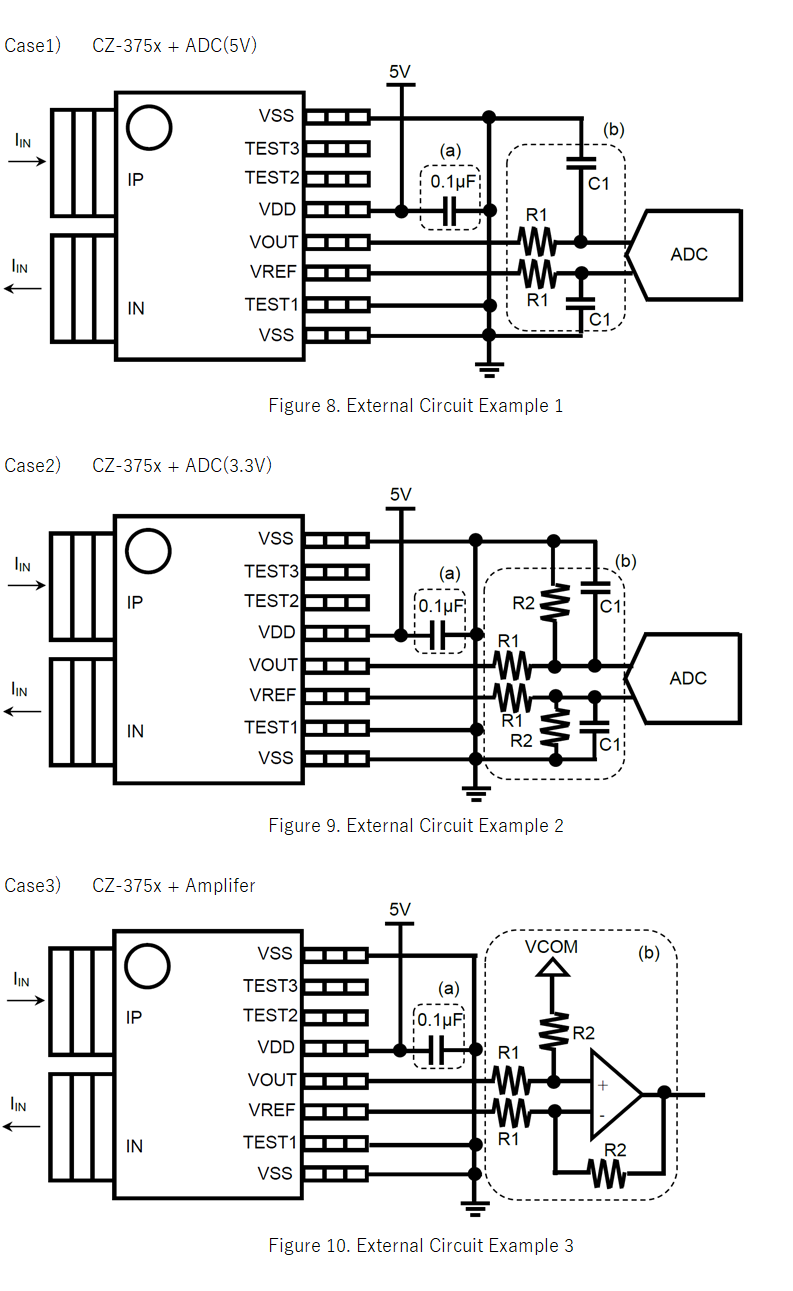

・What is the recommended circuit diagram to use the CZ-375x?
A.
・In this subsection, we show three examples of the external circuit when using CZ375x.
These are just examples and there are other possible circuits. Please evaluate your external circuit by yourself.

Case 1) Connecting a 5V A/D converter in the subsequent stage
(a) A 0.1μF bypass capacitor should be placed close to VDD and VSS pins of CZ-375x.
(b) Add a low-pass filter to VOUT and VREF pins if it is necessary. The R1 and C1 values should be fixed in consideration of the time constant of the filter and load conditions.

Case 2) Connecting a 3V A/D converter in the subsequent stage
(a) 0.1μF bypass capacitor should be placed close to VDD and VSS pins of CZ-375x.
(b) Add a low-pass filter to VOUT and VREF pins if it is necessary. The R1, R2 and C1 values should be fixed in consideration of the time constant and the resistive divider ratio.

Case 3) Connecting an amplifier to change the reference voltage
(a) 0.1μF bypass capacitor should be placed close to VDD and VSS pins of CZ-375x.
(b) R1 and R2 are resistors that decides the gain. The R1 and R2 values should be fixed in consideration of the gain.
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0636]
・I'm worried about the heat generated when applying a large current.
A.
・The CZ-375x is capable of 100Arms continuous current, even larger current in case of transitional. When CZ-375x is used under conditions compliant with UL61800-5-1, please ensure the case temperature (Tc) is kept lower than 130°C from heating by the primary current. Please refer to the Figure11. for the position to measure Tc.
 If the heat dissipation is not enough, using “pad on vias” at the primary conductor pads  may help. These can increase heat dissipation without increasing the trace area by thermally connecting the primary conductors to an inner and outer layers directly.

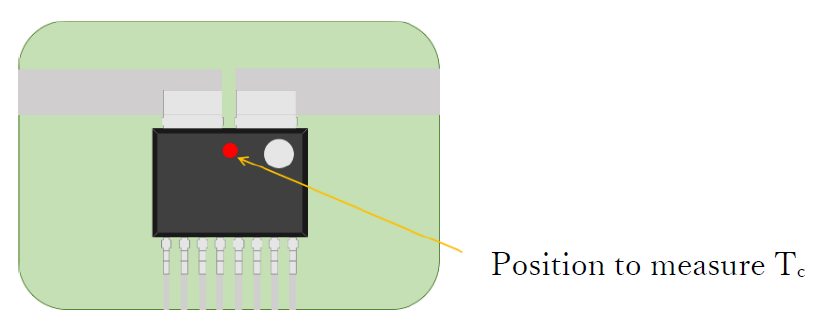

Figure 11. Position to measure package case temperature
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0637]
・What is the ESD tolerance?
A.
・CZ-375x have the ESD tolerance which is more than 2000V by human body model (HBM) and more than 200V by machine model (MM).
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0638]
・How much does CZ-375x have influenced from the other current line?
A.
・There are two Hall elements inside CZ-375x connected in a differential manner. By detecting the difference of these two Hall elements’ outputs, CZ-375x reduces the effects of stray magnetic fields as a built-in common-mode rejection function. When the same magnetic field is applied to both Hall elements, this magnetic field is deemed to be the stray and is reduced from the output of CZ-375x by the ratio of Stray Magnetic Field Reduction (Ebc: 0.01A/mT Typ.).

Example: When a stray magnetic field of 1mT is applied to the CZ-375x, the output will have additional error of 0.01A=10mA equivalent.
-	CZ-375A: Sensitivity=19.5mV/A, Error=10mA → Output error=0.2mV
-	CZ-375D: Sensitivity=10mV/A,  Error=10mA → Output error=0.1mV

On the other hand, when different magnetic fields are applied to each Hall element, this will appear as output error. For example, a current carrying trace that runs close the CZ-375x may cause this.

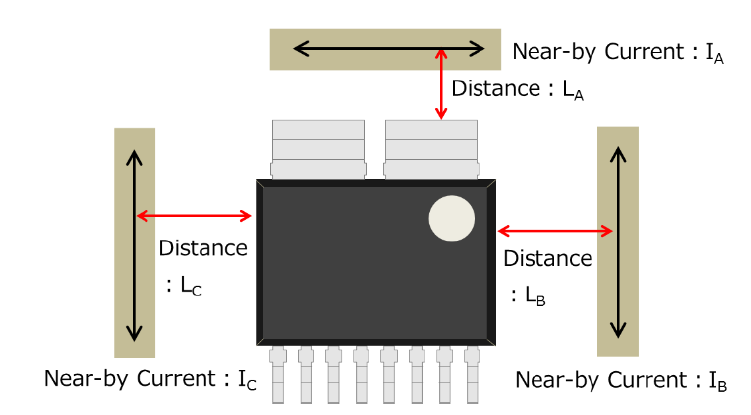

Figure 12. Examples of nearby current lines

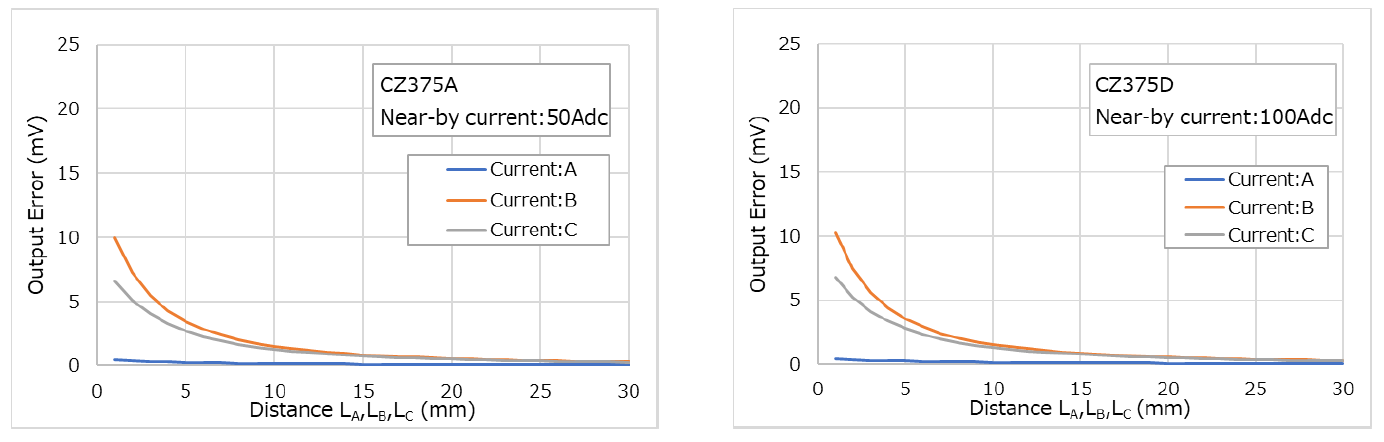

Figure 13. Output Error by nearby current
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0639]
・Is there a way to estimate the temperature of CZ-375x?
A.
・The temperature of the lead frame and the sensor inside the package are almost the same, the best estimated temperature would be of the lead frame.
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0640]
・What is the effect on the device characteristics with respect to temperature change?
A.
・The graphs below show the change in characteristics when the ambient temperature is changed from 25 to -40 ° C and 105 ° C.
Figure 14 shows temperature drift of sensitivity, Figure 15 shows temperature drift of zero-current output, and Figure 16 shows total accuracy.
All graphs show “Average” and “Average ±3σ” of the actual result in a certain lot.

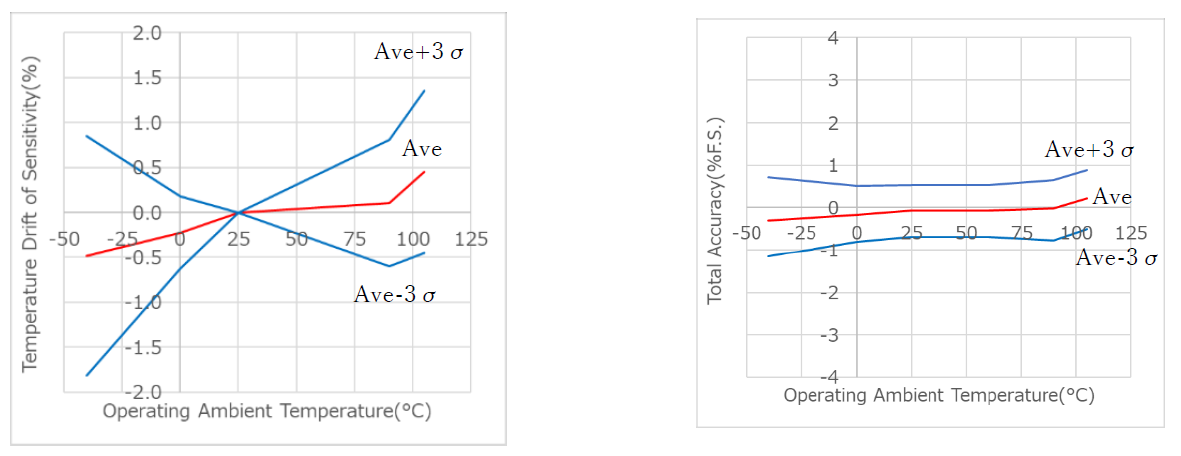

Figure 14. Temperature Drift of Sensitivity (left), Figure 16. Temperature dependency of Total Accuracy (right)

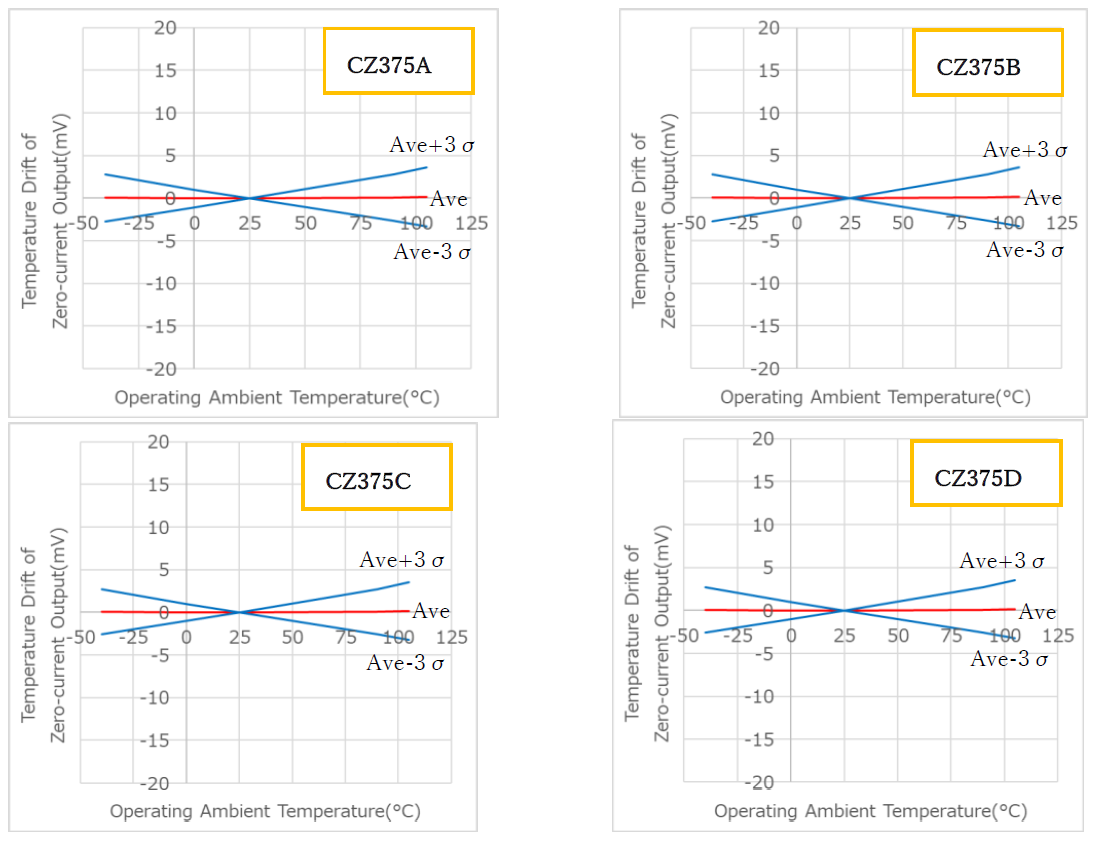

Figure 15. Temperature Drift of Zero-current Output
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0641]
・What is the impact on output when the voltage or the current applied to the primary?
A.
・Figure 17. shows the dV/dt noise of CZ-375x output voltage (VOUT -VREF), when 1kV is applied to the primary conductor at the rise time of 1μs. The blue line shows the input voltage waveform and the green line shows the output voltage waveform. The convergence time is as short as 2μs. Please avoid this noise by adjusting the capture timing.

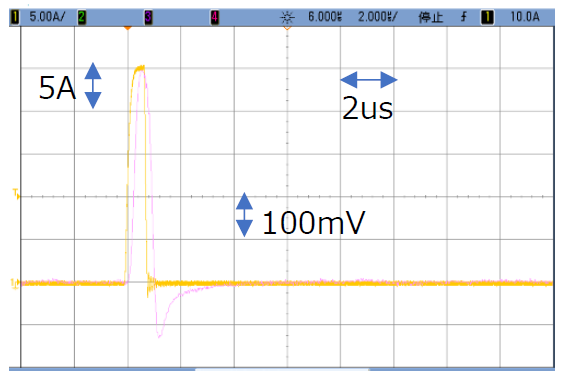

Figure 18. shows the output voltage (VOUT -VREF) of CZ-375x, when a 25A pulse is applied to the primary conductor with a pulse width of 1μs. The yellow line shows the input current waveform and the pink line shows the output voltage waveform. The convergence time is as short as 2μs.

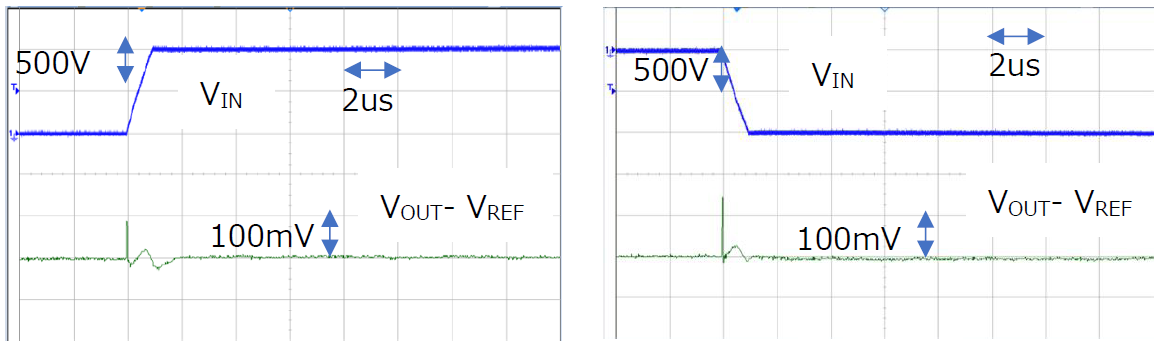

Figure 17. dV/dt noise waveform (left: rise waveform, right: fall waveform)
Figure 18. dI/dt noise waveform
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0642]
・Are CZ-375x halogen-free/RoHS?
A.
・CZ-375x are halogen-free/RoHS.
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0643]
・Are CZ-375x Pb-free?
A.
・CZ-375x are Pb-free.
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0644]
・What is the primary conductor made from?
A.
・The primary conductor is made from copper.
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0645]
・What is the thermal resistance of the package?
A.
・The thermal resistance (θja) of CZ-375x is 16°C/W when using the board shown in Figure 19.

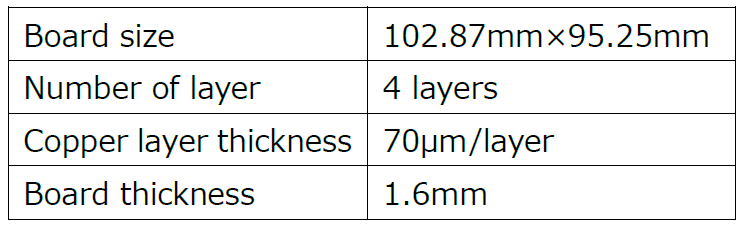

Table 5. Thermal Resistance measurement board

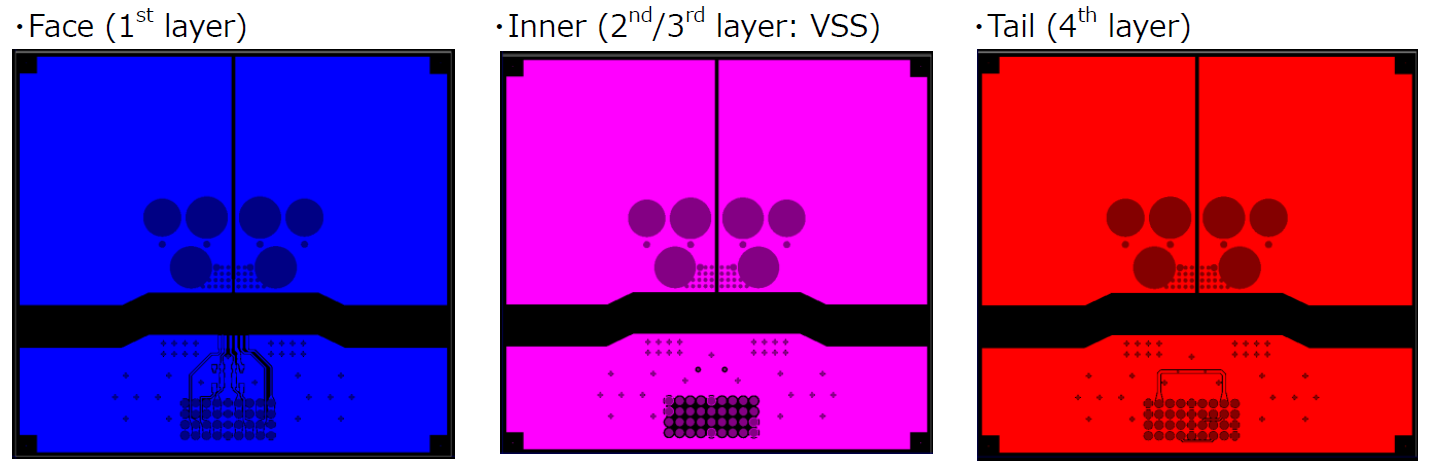

Figure 19. Thermal Resistance measurement board
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0646]
・Is it possible to use the internal EEPROM?
A.
・Sorry, internal EEPROM is not available.
Products will be shipped after the adjustment of EEPROM at factory test.
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0647]
・Is it possible to order the customized products?
A.
・It is possible to customize depending on quantity conditions and requirement.
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0648]
・Are there any precautions when using this product for the first time?
A.
・The Zero-Current Output of the CZ-375x may drift over time within the values defined in datasheet Section 13.
Therefore, in order to minimize this drift, we recommend calibrating the Zero-Current Output by software after the power-up time of the system when the measured current is zero.
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
[Q0649]
・Are there any precautions when using current sensors within the vacinity of stray magnetic fields/parts?
A.
・The CZ-375x output can be affected by magnetic devices (mechanical relays, transformers, etc.) that are nearby.
In the case where magnetic devices must be placed close to the CZ-375x, please check the effect on sensitivity or other characteristics and make sure any effects are understood and mitigated as much as possible.
Was it helpful?
Yes
No
Thank you We will reflect your opinion on the improvement of the web content.
